When it comes to crushing equipment in mining and aggregate industries, cone gyratory crushers are essential machines that play a vital role in the process of reducing large rocks into smaller sizes. In this article, we will delve into the anatomy of a cone gyratory crusher and explain how it operates to efficiently crush rocks and minerals.

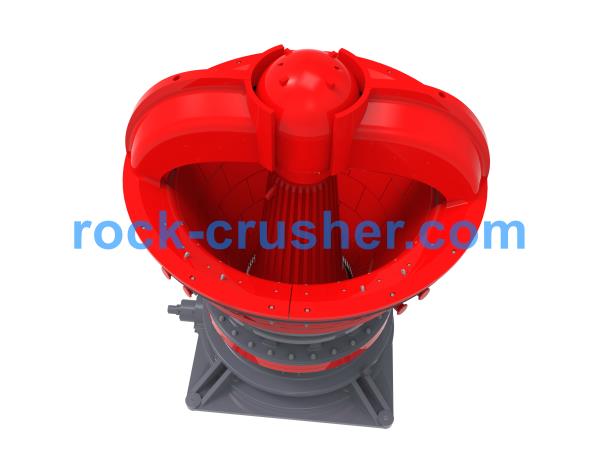

A cone gyratory crusher consists of a conical crushing head that is gyrating inside a crushing chamber. The crushing head is mounted on a spindle that is suspended from a spider, which is located at the top of the crusher. The crushing head is typically lined with manganese concaves and mantle, which are wear-resistant liners that protect the crushing chamber from wear and tear caused by the crushing process.

At the bottom of the crusher, there is a fixed crushing chamber, known as the concave, which is lined with wear-resistant liners to protect it from abrasion. concave is designed to be bolted to the main frame of the crusher and serves as the outer shell of the crushing chamber. The gap between the crushing head and theave determines the size of the crushed material.

In operation, the drive shaft of the crusher rotates the eccentric sleeve, which in turn causes the crushing head to gyrates This gyrating motion creates a crushing action as the rock is fed into the crushing chamber through the top of the crusher. The rock is crushed between the mantle and concave as crushing head moves back and forth, resulting in the reduction of the rock size.

The crushed material then exits the crushing chamber at the bottom of the crusher and is discharged onto a conveyor belt for further processing. Cone gyratory crushers are known for their high capacity and efficient crushing action, making them ideal for crushing hard and abrasive materials in mining and aggregate industries.

In brief, cone gyratory crushers are essential pieces of equipment in the mining and aggregate industries, offering high capacity and efficient crushing action. Understanding the anatomy of a cone gyratory crusher can help operators optimize the performance of these machines and maximize their productivity. By maintaining proper maintenance and regular inspections, gyratory crushers can be reliable assets in any crushing plant.
