When it comes to the efficient operation and longevity of jaw crushers, one crucial component often discussed but not always fully understood is the liner plate. These plates play a pivotal role in the functionality of the crusher and have a significant impact on its overall performance. In this article, we'll delve into what liner plates are, their importance, and how to maintain them for optimal performance.
What Are Liner Plates?

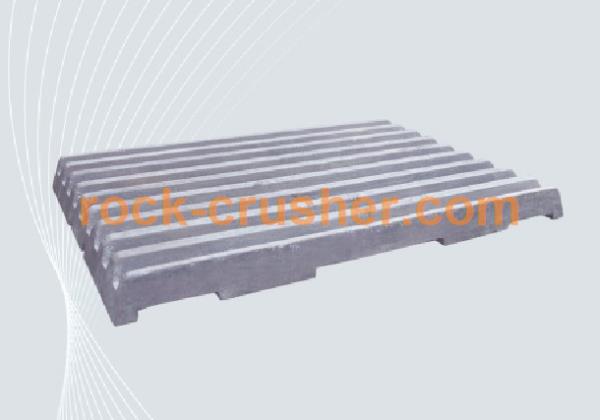

Liner plates are essential components of jaw crushers, designed to protect the interior surfaces of the crusher from the abrasive effects of the materials being processed. Jaw crushers, used extensively in the mining and construction industries, rely on these plates to withstand the harsh conditions under which they operate. The liner plates, typically made from high manganese steel or other wear-resistant materials, line the inner surfaces of the crusher, including the jaw plates, cheek plates, and sometimes the bottom plates.
The Role of Liner Plates in Jaw Crushers
The primary function of liner plates is to provide a durable and replaceable surface that can handle the severe wear and tear caused by the crushing process. As the jaw crusher operates, the raw material is fed into the crushing chamber, where it is subjected to intense pressure between the stationary and moving jaws. The liner plates absorb much of the impact and abrasion from the crushing material, thereby protecting the more critical components of the crusher from excessive wear.
Additionally, the design and condition of the liner plates directly influence the efficiency of the crushing process. Well-maintained liners ensure consistent product size, reduce the likelihood of blockages, and can significantly affect the overall throughput of the crusher. Properly fitted and worn liner plates contribute to maintaining the desired output while minimizing energy consumption.
Types of Liner Plates
Liner plates come in various types, each tailored to specific applications and materials. The most common types include:
1. High Manganese Steel Liners: Known for their high impact resistance and ability to work-harden, high manganese steel liners are the most widely used. They are particularly effective in handling materials that are tough and abrasive.
2. Chrome-Moly Steel Liners: These liners are designed for applications where corrosion resistance is crucial. Chrome-moly steel offers a good balance between hardness and toughness, making it suitable for specific operating conditions.
3. Tungsten Carbide Inserts: For applications with extremely abrasive materials, tungsten carbide inserts can be used. They provide enhanced wear resistance and durability but come at a higher cost.
Maintaining and Replacing Liner Plates
To ensure the longevity and effectiveness of liner plates, regular maintenance and timely replacement are essential. Here are some key practices:
- Regular Inspection: Frequent checks of the liner plates help identify signs of wear and tear before they cause significant damage. This includes monitoring for cracks, excessive wear, and overall condition.
- Scheduled Replacements: Liner plates should be replaced according to the manufacturer’s recommendations or based on operational wear patterns. Replacing liners at the right time prevents potential damage to other parts of the crusher.
- Proper Installation: Ensure that new liner plates are installed correctly. Improper installation can lead to misalignment, reduced efficiency, and increased wear on other components.
Liner plates are integral to the efficient operation of jaw crushers. Understanding their role, types, and maintenance requirements can significantly impact the performance and lifespan of the equipment. By paying close attention to the condition of the liner plates and adhering to best practices for maintenance and replacement, operators can ensure their jaw crushers continue to perform optimally and deliver reliable results.
