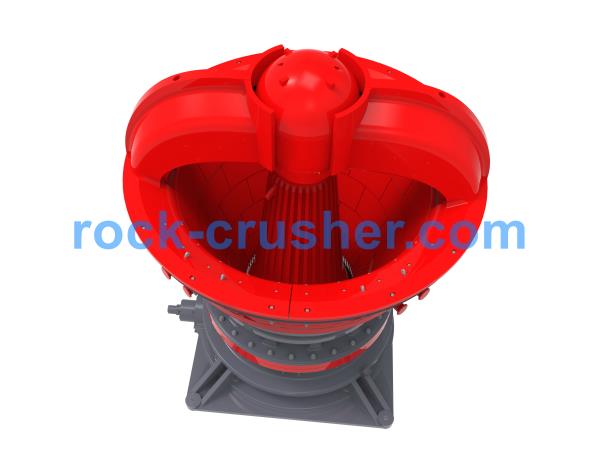

In the mining industry, the primary function of a gyratory crusher is to reduce large rocks into smaller sizes. Like any other type of crusher, a gyratory crusher has several components that make it work. Each component plays a crucial role in the overall functioning of the crusher, making it a vital piece of machinery for rock crushing.

1. Spider Arm

The spider arm is one of the main components of a gyratory crusher. It forms the foundation of the entire crusher and supports the weight of the upper structure (mantle) as well as the material being crushed. The spider arm has a pivoting motion that allows the mantle to move freely, ensuring a consistent reduction in size of the rocks.

2. Mantle

The mantle is the main wearing part of the gyratory crusher. It is a wear-resistant, concave-shaped surface that sits over the spider arm and is secured by a nut. The mantle directly contacts the incoming rocks, effectively crushing them against the concave surface. As the mantle wears down over time, it can be replaced to maintain the crusher's efficiency.

3. Concave Liners

Concave liners are an essential component of gyratory crushers. They are mounted on the top of the mantle and play a crucial role in crushing the rocks. The concave liners are designed to have a curved profile that fits the mantle's curvature, allowing for efficient rock crushing. They are also replaceable, ensuring the crusher's longevity.

4. Eccentric Assembly

The eccentric assembly is another critical component of a gyratory crusher. It consists of a large eccentric shaft, a mainshaft sleeve, and an outer eccentric bushing. The eccentric assembly causes the mainshaft and mantle to rotate eccentrically, creating the gyratory motion of the crusher. This motion allows for a higher crushing capacity and a consistent product size.

5. Mainshaft

The mainshaft is a rotating component that connects the eccentric assembly to the crusher's drive system. It transmits the crushing force from the eccentric assembly to the rest of the crusher. The mainshaft is usually hollow to allow for the insertion of a counterweight, which helps balance the crusher during operation.

6. Drive System

The drive system of a gyratory crusher is responsible for rotating the mainshaft, which in turn drives the mantle to crush the rocks. It typically consists of a motor, a transmission device, and various supporting components such as belts and pulleys. The drive system must be robust and reliable to withstand the high forces and torque generated by the crusher.

Therefore, the components of a gyratory rock crusher, including the spider arm, mantle, concave liners, eccentric assembly, mainshaft, and drive system, all work together to achieve efficient and effective rock crushing. Each component has a specific role to play in reducing the size of the rocks and ensuring a consistent product. Regular maintenance and replacement of the wearing parts are essential for optimal crusher performance.
